Manufacturer Part #
IMC2220ER222J

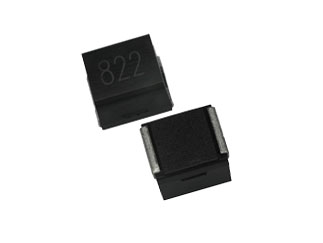

IMC-2220 Series 2.2 mH ±5 % 55 mA 35 Ohm SMT High Frequency SMT Molded Inductor
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Vishay | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Vishay IMC2220ER222J - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
Vishay IMC2220ER222J - Technical Attributes
Attributes Table
| Type: | Unshielded |
| Inductance-Nom: | 2.2mH |
| Rated Current-Max: | 55mA |
| Tolerance (%): | ±5% |
| DC Resistance-Max: | 35Ω |
| Self Resonance Frequency: | 1.2MHz |
| Test Frequency: | 252kHz |
| Operating Temp Range: | -40°C to +125°C |
| Dimension: | L 5.61mm x W 5mm x H 4.2mm |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
19 Weeks
Quantity
Unit Price
1,000
$0.265
2,000+
$0.26
Product Variant Information section
Available Packaging
Package Qty:
1000 per Reel
Mounting Method:
Surface Mount
