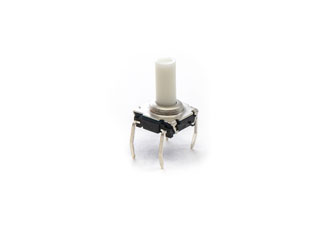

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

TL6100DF300QP

TL6100 Series SPST 3 N Round Button PC Sealed Thru-Hole Tactile Switch

TL6100DF300QP Datasheet TL6100DF300QP Documentation Specification
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	E-Switch
Standard Pkg:	Product Variant Information section Available Packaging Tube TubeSelected Variant Qty: 5,040+ / Unit Price: $0.675 / Stock: 0 Qty: 60+$0.675 Stock: 0 Package Qty: 60 per Tube Mounting Method: Through Hole
Date Code:

E-Switch TL6100DF300QP - Technical Attributes

Switch Operation:	Off-Mom
Circuitry:	SPST N.O.
Voltage Rating:	12V
Current Rating:	50mA
Insulation Resistance:	100MΩ
Actuation Force:	3N
Contact Material:	Silver
Operating Force:	300gf
Contact Plating:	Silver
Actuator Style:	Round Button
Termination Style:	PC Through Hole
Dielectric Withstanding Voltage:	250V
Operating Temperature:	-40°C to +85°C
Dimension:	L 7.2mm x W 7.2mm
Mounting Method:	Through Hole

Expand List

Collapse List

Features & Applications

Introducing the new TL6100 series of tactile switches that are process sealed to prevent contamination of the switch contacts during wave soldering or water-wash processes.

Designed for through-hole mounting on a circuit board, the switches are ideal for computer keyboards, personal digital assistants,video games, cell phones, appliances and electronic instrumentation. Available with either a phosphor bronze dome or a stainless steel dome, the TL6100 series features a life expectancy of 80,000 cycles minimum.

Features:
