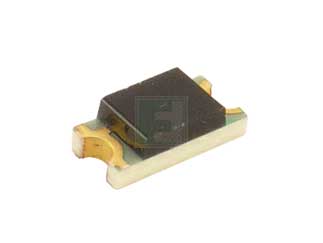

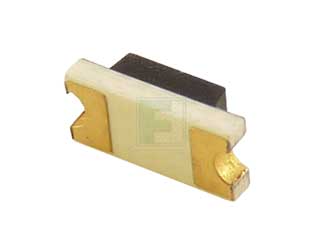

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

PT15-21B/TR8

940 nm 30 Vce 20 mA Black Flat Top View Lens Phototransistor

PT15-21B/TR8 Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	Everlight
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 3000 per Reel Mounting Method: Surface Mount
Date Code:

Everlight PT15-21B/TR8 - Technical Attributes

Wavelength:	940nm
Bandwidth:	770nm to 1200nm
Power Dissipation:	75mW
CE Voltage-Max:	30V
Collector Current @ 25C:	20mA
Mounting Method:	Surface Mount

Features & Applications

The PT15-21B/TR8 is a phototransistor in miniature SMD package which is molded in a black plastic with flat top view lens. The device is spectrally matched to infrared emitting diode.

Features:

Fast response time
High photo sensitivity
Small junction capacitance
High reliability

Applications:

Miniature switch
Counters and sorter
Interrupter
Position sensor

View the List of available PT15 Series of Phototransistor
