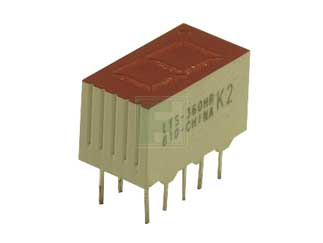

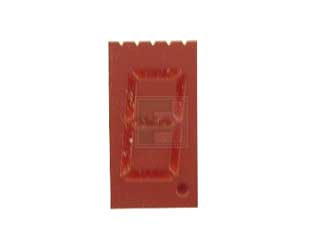

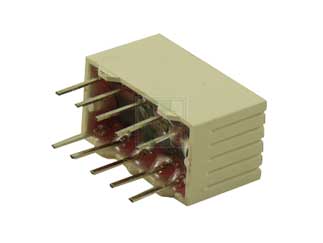

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

LTS-360HR

Single Digit Seven Segment High Efficiency Red 0.36" Common Anode Display

LTS-360HR Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	LITEON
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 35 per Tube Mounting Method: Through Hole
Date Code:	2502

LITEON LTS-360HR - Technical Attributes

Display Type:	Seven Segment
Digit/Alpha/Matrix Size:	0.36in
Color:	Red
Common Pin Value:	Anode
Mounting Method:	Through Hole

Features & Applications

The LTS-360HR is a 0.36 inch (9.14 mm) Digit Height, Single Digit Seven Segment LED Display. This device utilizes high efficiency red LED chips, which are made from GaAsP on a transparent GaP substrate, and has a red face and red segments.

Features:

0.36 inch (9.14 mm) digit height
Continuous uniform segments
Low power requirement
Excellent characters appearance
High brightness and high contrast
Wide viewing angle
Solid state reliability
Categorized for luminous intensity
