Manufacturer Part #
MC9S08QG8CDTE

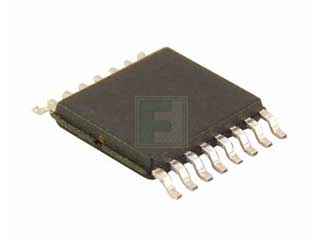

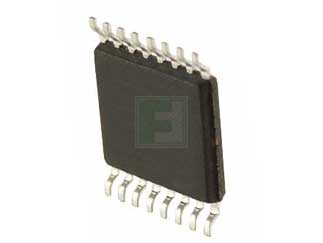

HCS08 Series 4 KB Flash 512 B RAM 20 MHz 8-Bit Microcontroller - TSSOP-16
| | |||||||||||
| | |||||||||||
| Mfr. Name: | NXP | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2880 per Tube Package Style:TSSOP-16 Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2447 | ||||||||||
Product Specification Section
NXP MC9S08QG8CDTE - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
3A991.a.2
This item may be subject to export licensing controls.
PCN Information:
N/A
File
Date
Part Status:
Active
Active
NXP MC9S08QG8CDTE - Technical Attributes
Attributes Table
| Family Name: | HCS08 |
| Core Processor: | S08 |
| Program Memory Type: | Flash |
| Flash Size (Bytes): | 8kB |
| RAM Size: | 512B |
| Speed: | 20MHz |
| No of I/O Lines: | 12 |
| InterfaceType / Connectivity: | I2C/SCI/SPI |
| Peripherals: | Analog Comparators/I2C/On-Chip-ADC/PWM/SCI/SPI/Watchdog |
| Number Of Timers: | 1 |
| Supply Voltage: | 1.8V to 3.6V |
| Operating Temperature: | -40°C to +85°C |
| On-Chip ADC: | 8-chx10-bit |
| Watchdog Timers: | 1 |
| Package Style: | TSSOP-16 |
| Mounting Method: | Surface Mount |
Features & Applications
Pricing Section
Global Stock:
4,290
USA:
4,290
Factory Lead Time:
13 Weeks
Quantity
Unit Price
1
$2.36
20
$2.31
40
$2.29
125
$2.25
250+
$2.20
Product Variant Information section
Available Packaging
Package Qty:
2880 per Tube
Package Style:
TSSOP-16
Mounting Method:
Surface Mount
