Manufacturer Part #
TCM809SENB713

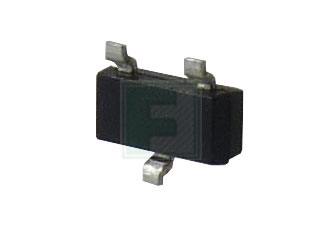

TCM809 Series 2.93 V 140 ms 3-Pin Microcontroller Reset Monitor - SOT-23
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Microchip | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Package Style:SOT-23 (SC-59,TO-236) Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2427 | ||||||||||
Product Specification Section
Microchip TCM809SENB713 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
Microchip TCM809SENB713 - Technical Attributes
Attributes Table
| No of Outputs: | Single |
| Threshold Voltage: | 2.93|V |
| Supply Voltage-Max: | 5.5V |
| Reset Timeout: | 140ms |
| Package Style: | SOT-23 (SC-59,TO-236) |
| Mounting Method: | Surface Mount |
Features & Applications
The TCM809SENB713 is a part of TCM809 Series Switching Regulators.It can sustain a standard temperature ranging from -40 to +85°C. It comes in SOT-23B-3 package.
The TCM809 is cost-effective system supervisor circuits designed to monitor VCC in digital systems and provide a reset signal to the host processor when necessary. No external components are required. The reset output is driven active within 20 µsec of VCC falling through the reset voltage threshold.
Features:
- Precision VCC Monitor for 3.0 V, 3.3 V, 5.0 V
- Nominal System V Supplies
- 140 msec Guaranteed Minimum RESET, RESET
- Output Duration
- RESET Output Guaranteed to VCC = 1.0 V (TCM809)
- Low 12 µA Supply Current
- VCC Transient Immunity
- No External Components
Applications:
- Computers
- Embedded Systems
- Battery Powered Equipments
- Critical Microcontroller Power Supply Monitoring
- Automotive
Pricing Section
Global Stock:
3,000
Germany (Online Only):
3,000
On Order:
0
Factory Lead Time:
5 Weeks
Quantity
Web Price
3,000
$0.365
6,000
$0.36
9,000
$0.355
12,000
$0.355
15,000+
$0.345
Product Variant Information section
Available Packaging
Package Qty:
3000 per Reel
Package Style:
SOT-23 (SC-59,TO-236)
Mounting Method:
Surface Mount
