Manufacturer Part #
NJW4140RZ2-TE1

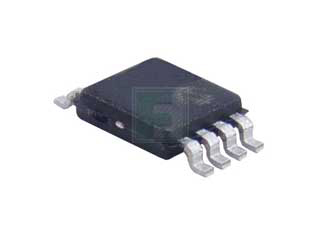

MOSFET Drive Switching Regulator IC , 3V to 40V , MSOP8
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Nisshinbo Micro Devices | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2000 per Reel Package Style:MSOP-8 Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2404 | ||||||||||
Product Specification Section
Nisshinbo Micro Devices NJW4140RZ2-TE1 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
Nisshinbo Micro Devices NJW4140RZ2-TE1 - Technical Attributes
Attributes Table
| Topology: | Boost/Flyback |
| Input Voltage: | 3V to 40V |
| Output Voltage Range: | 0.8V to 40V |
| Output Type: | Adjustable |
| Switching Frequency-Max: | 1MHz |
| Operating Temp Range: | -40°C to +125°C |
| Duty Cycle-Max: | 95% |
| No. of Outputs: | 1 |
| Quiescent Current: | 1.4mA |
| Storage Temperature Range: | -40°C to +150°C |
| Moisture Sensitivity Level: | 1 |
| Product Status: | Active |
| Package Style: | MSOP-8 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
2,000
USA:
2,000
On Order:
0
Factory Lead Time:
12 Weeks
Quantity
Unit Price
2,000+
$0.99
Product Variant Information section
Available Packaging
Package Qty:
2000 per Reel
Package Style:
MSOP-8
Mounting Method:
Surface Mount
