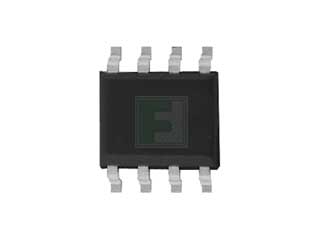

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

FAN7529MX

FAN7529 Series 22 V 3 mA Critical Conduction Mode PFC Controller- SOIC-8

FAN7529MX Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	onsemi
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 3000 per Reel Package Style: SOIC-8 Mounting Method: Surface Mount
Date Code:	2507

onsemi FAN7529MX - Technical Attributes

Supply Current-Max:	3mA
Supply Voltage-Max:	22V
Operating Temp Range:	-40°C to +125°C
Package Style:	SOIC-8
Mounting Method:	Surface Mount

Features & Applications

The FAN7529MX is a FAN7529 Series 22 V 3 mA Critical Conduction Mode PFC Controller- SOIC-8 package .

The FAN7529 is an active power factor correction (PFC) controller for boost PFC applications that operates in critical conduction mode (CRM). It uses the voltage mode PWM that compares an internal ramp signal with the error amplifier output to generate MOSFET turn-off signal.Because the voltage-mode CRM PFC controller does not need rectified AC line voltage information, it saves the power loss of the input voltage sensing network necessary for the current-mode CRM PFC controller .

Product Features:

Low Total Harmonic Distortion (THD)
Precise Adjustable Output Over-Voltage Protection
Open-Feedback Protection and Disable Function
Zero Current Detector
150μs Internal Start-up Timer
MOSFET Over-Current Protection
Under-Voltage Lockout with 3.5V Hysteresis
Low Start-up (40μA) and Operating Current (1.5mA)
Totem Pole Output with High State Clamp
+500/-800mA Peak Gate Drive Current
8-Pin DIP or 8-Pin SOP

Applications:

Adapter
Ballast
LCD TV, CRT TV
SMPS
