Manufacturer Part #
HIP4020IBZT

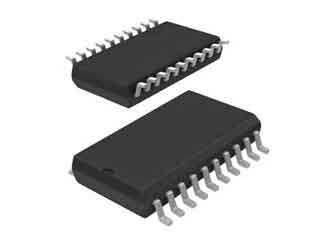

HIP4020 Series 12 V 500 mA Surface Mount Full Bridge Power Driver - SOIC-20
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Renesas | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Reel Package Style:SOIC-20 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Renesas HIP4020IBZT - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
Renesas HIP4020IBZT - Technical Attributes
Attributes Table
| Motor Type: | Stepper |
| No of Outputs: | Dual |
| Output Current-Max: | 0.5A |
| Supply Current: | 0.8mA |
| Supply Voltage-Max: | 15V |
| Supply Voltage: | 3V to 12V |
| Fall Time: | 0.1µs |
| Rise Time: | 4µs |
| Operating Temp Range: | -40°C to +85°C |
| Package Style: | SOIC-20 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
18 Weeks
Quantity
Unit Price
1,000+
$3.83
Product Variant Information section
Available Packaging
Package Qty:
1000 per Reel
Package Style:
SOIC-20
Mounting Method:
Surface Mount
