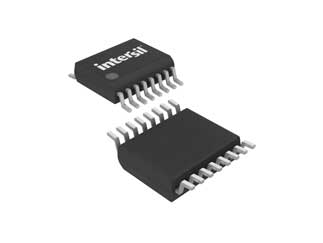

Renesas | EL7457CUZ-T7

This device is capable of running at clock rates up to 40 MHz and features 2 A peak drive capability and a nominal on-resistance of just 3 Ω and is ideal for driving highly capacitive loads, such as storage and vertical clocks in CCD applications.

Features:

• Clocking speeds up to 40MHz
• 4 channels
• 12 ns tR/tF at 1000 pF CLOAD
• 1 ns rise and fall time match
• 1.5 ns prop delay match
• Low quiescent current - <1 mA
• Fast output enable function - 12 ns
• Wide output voltage range
• 8 V ≥ VL ≥ -5 V
• -2 V ≤ VH ≤ 16.5 V
• 2 A peak drive
• 3 Ω on resistance
• Input level shifters
• TTL/CMOS input-compatible
• Pb-free (RoHS compliant)

Applications:

• CCD drivers
• Digital cameras
• Pin drivers
• Clock/line drivers
• Ultrasound transducer drivers
• Ultrasonic and RF generators
• Level shifting
