Manufacturer Part #

1658681-1

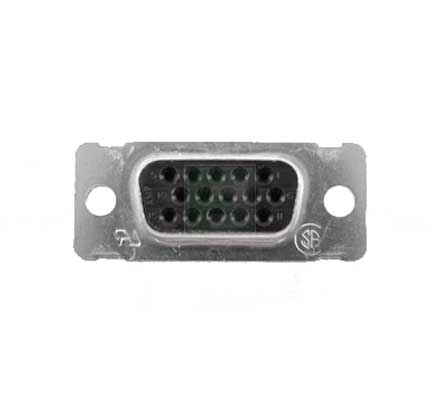

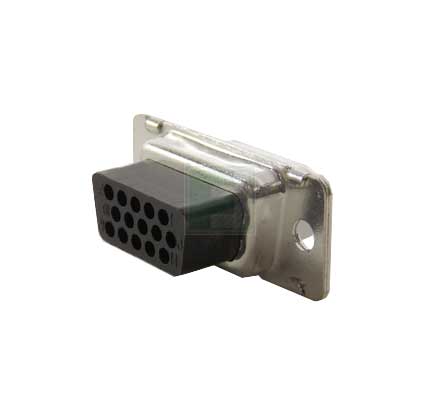

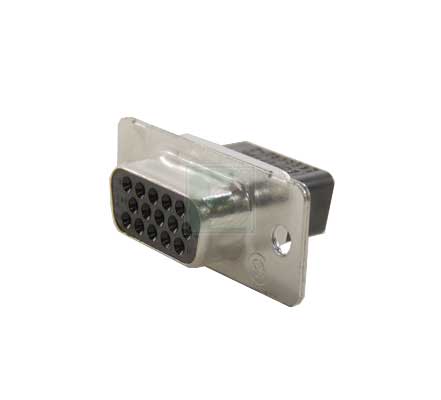

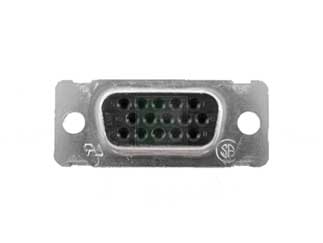

HDP22 Series 15 Position Crimp Contact Socket D-Sub Cable Connector

1658681-1 Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	TE Connectivity
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 800 per Box Mounting Method: Through Hole
Date Code:

TE Connectivity 1658681-1 - Technical Attributes

Style/Orientation:	Standard Cable Receptacle
No of Positions:	15
No of Rows:	3
Termination:	Crimp Snap
Material:	Front Metal
Shell Size:	1 E
Gender:	Female
Color:	Black
Contact Plating:	Gold Flash
Insulation Resistance:	5000MΩ
Operating Temperature:	-55°C to +105°C
Mounting Method:	Through Hole

Expand List

Collapse List

Features & Applications

Tyco Electronics

Amplimite Subminiature D Type Connectors

HDP-22 Crimp Snap-In Contact Connectors Series

Overview:

Tyco Electronics is the world’s leading connector manufacturer. Tyco Electronics Amplimite family of subminiature D connectors is the industry’s most extensive and versatile. These subminiature D connectors have become the most popular type of input/output (I/O) connectors in use today.

Established and proven, they are rugged, easily used and have been widely adopted in standards for serial communications, telecommunications and local area networks (LANS).

Available in panel mount or free hanging configuration, Amplimite family offers interconnect solutions for wire-to-board, panel-to-panel and wire-to-panel applications. A wide choice of shell sizes, number of positions and contact sizes is also available.

Amplimite HDP-22 Crimp Snap-In Contact Series represents the core of the Amplimite offer, providing a lower cost, commercial version of the military approved Series 90 family. This low cost, high performance, precision-formed crimp contact connector has shell sizes that offer a wide selection of contact positions – 15, 26, 44, 62 and 78. HDP-20 series of connectors use size 22 contacts, which are based on .030 inches [0.76 cm] pin diameters with contact centerlines of .090 x .078 inches [2.29 x 1.98 cm] for shell sizes of 1,2 and 3; .095 x .078 inches [2.41 x 1.98 cm] for shell sizes of 4; and .095 x .082 inches [2.41 x 2.08 cm] for shell size 5. The smaller pin diameter of the HDP-22 series allow roughly 65% more contacts to be held in a given shell size and therefore higher density than the HDP-20 series connector. Crimp snap-in contacts also allows loading of only the number of contact being used.

1658681-1 is an Amplimite HDP-22 Series Panel Mount or Free Hanging Receptacle with 15 (socket/female contact) positions housed in a size 1 full metal tin plated shell body.

The 1658681-1 comes without contacts. See Accessories for Contact options.

Mating options can also be found in the Related Products Tab
