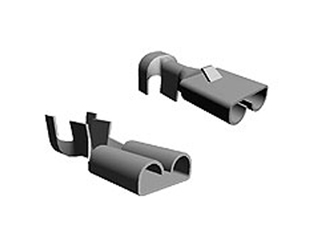

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

60253-2

FASTIN-FASTON 0.250 Series 16-12 AWG Straight F-Crimp Receptacle Contact

60253-2 Datasheet 60253-2 Documentation Product Specification Application Note Product Drawing 3D View
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	TE Connectivity
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 10000 per Reel
Date Code:	2328

TE Connectivity 60253-2 - Technical Attributes

Type:	Contact
Contact Termination:	Crimp Terminal
Contact Material:	Brass
Contact Plating:	Tin

Features & Applications

The 60253-2 s a FASTIN-FASTON 0.250 Series 16-12 AWG Straight F-Crimp Receptacle Contact.

The TE FASTIN-FASTON connectors offer the advantage of the FASTON receptacles technology in multiple applications. In wiring harnesses, they are mainly used as multiposition and coupling connectors. Up to 8 position connectors can be mated in one operation with a maximum of 20 leads terminated.

Features:

Used for single and multiple connections
Receptacles and tabs available for 6.3, 4.8 and 2.8 mm size (.250 – .187 and .110 Series)
Receptacles mate with 0.5 and 0.8 thick tabs
IEC 60335-1, Glow Wire 750° No Flame housings available
Product Type = Contact
Mating Area Interface Dimensions (mm [in]) = 6.35 x 0.81 [.250 x .032]
Insulation Diameter (mm [in]) = (2) 3.30 [.130] Max., 4.06-5.33 [.160-.210]
Receptacle Style = Straight
Wire/Cable Type = Regular Wire
Finish = Tin
Material = Brass
Insertion Force = Normal
Insulation Support = With
Crimp Type = F-Crimp
Contact Type = Receptacle
RoHS/ELV Compliance = RoHS compliant, ELV compliant
