Manufacturer Part #
154740-E
SMCQ 12 F AB VV 7-03 CL * 0007 137 E002
Product Specification Section

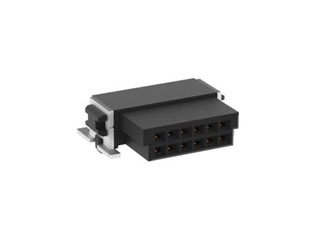

TE Connectivity 154740-E - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
File
Date
Design
01/29/2024 Details and Download
Reason and description of change:Valued customer,for the article numbers listed below a new revision of the customer drawing is available. We have adapted the following tolerances to the real state of the part (see yellow marking).These change will be operated without partnumber change.This change will not affect reliability of product and has no impact on form, fit or function of these products
Part Status:
Active
Active
TE Connectivity 154740-E - Technical Attributes
Attributes Table
| Connector Type: | Receptacle |
| Style/Orientation: | Right Angle Socket/Receptacle |
| No of Positions: | 12 |
| Pitch: | 1.27 mm |
| No of Rows: | 2 |
| Color: | Black |
| Termination: | Solder |
| Operating Temp Range: | -55°C to +125°C |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
560
USA:
560
On Order:
0
Factory Lead Time:
17 Weeks
Quantity
Unit Price
560
$1.53
1,120+
$1.51
Product Variant Information section
Available Packaging
Package Qty:
560 per Reel
Mounting Method:
Surface Mount
