Manufacturer Part #

78H01ST

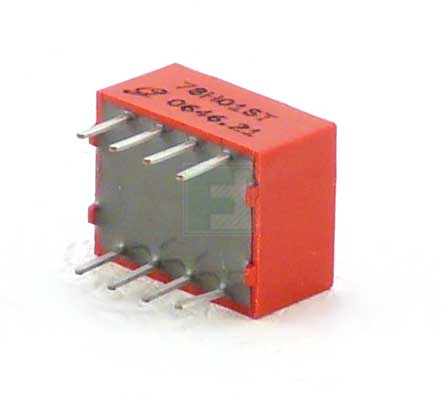

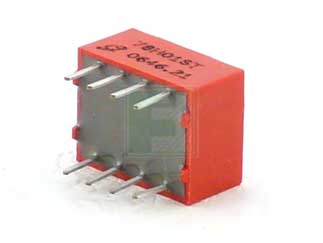

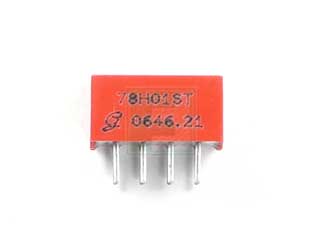

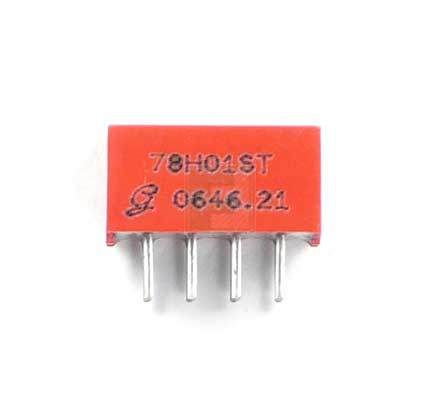

78 Series Raised Slide 4PST 1 Position Through Hole DIP Switch

78H01ST Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	Grayhill
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 21 per Tube Mounting Method: Through Hole
Date Code:	2437

Grayhill 78H01ST - Technical Attributes

Type:	Dip
No of Positions:	1
Termination Style:	PCB
Sealed Option:	Sealed
Mounting Method:	Through Hole

Features & Applications

Grayhill’s 78 Series of Through Hole Dip Switches are well suited for a variety of applications including telecom, computer motherboards as well as remote control frequency setting. These through hole dip switches are available with raised slides for Single Pole Single Throw (SPST), Double Pole Single Throw (2PST), Triple Pole Single Throw (3PST) & Four Pole Single Throw (4PST) operation solutions. Recessed slides are an option with SPST circuitry.

A spring and ball contact as well as a sealed base are offered as standard with the 78 series from Grayhill. In cases where switches will be machine soldered or heavily cleaned after hand soldering, a top tape seal option is available (add S to the part number before the T). Contacts are of copper alloy, gold plated over nickel barrier.

The 78H01ST is an 1 position through hole DIP switch with raised slides and top tape sealed offering a Single Pole Quadruple Throw (SP4T) switch operation.
