Manufacturer Part #
5435802-3

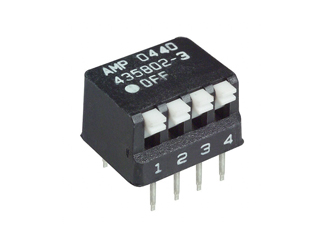

7000 Series Through Hole Single Throw Piano Actuator Not Sealed DIP Switch
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:25 per Tube Mounting Method:Through Hole | ||||||||||
| Date Code: | 2344 | ||||||||||
TE Connectivity 5435802-3 - Product Specification
Shipping Information:
ECCN:
PCN Information:
General Description of Changes: The listed part numbers are being discontinued and no longer available. Suggested substitute part numbers are shown below, with differences described. Please verify that all substitute part numbers provided below are suitable for your specific application. Drawings are available via TE.com.Reason for Changes: As part strategic alignment and portfolio optimization, TE has decided to discontinue the TCPN's included in the list below. Last time buy and last time shipments will be supported until the provided dates below. Please refer to the provided alternative/replacement PNs highlighted (if listed) with the intention to support the continuity of our customer's design needs. Please review any replacement parts as they may not be form/fit/function equivalents.Last Order Date (Obsolete Parts Only): 05-JUL-2024Last Ship Date of Changed Items (Obsolete Parts Only): 31-OCT-2024
General Description of Changes: The listed part numbers are being discontinued and no longer available. Suggested substitute part numbers are shown below, with differences described. Please verify that all substitute part numbers provided below are suitable for your specific application. Drawings are available via TE.com.Reason for Changes: As part strategic alignment and portfolio optimization, TE has decided to discontinue the TCPN's included in the list below. Last time buy and last time shipments will be supported until the provided dates below. Please refer to the provided alternative/replacement PNs highlighted (if listed) with the intention to support the continuity of our customer's design needs. Please review any replacement parts as they may not be form/fit/function equivalents.Last Order Date (Obsolete Parts Only): 05-JUL-2024Last Ship Date of Changed Items (Obsolete Parts Only): 31-OCT-2024
Part Status:
TE Connectivity 5435802-3 - Technical Attributes
| Type: | Dip |
| No of Positions: | 4 |
| Circuitry: | SPST |
| Actuator Style: | Side Actuated |
| Termination Style: | PC Pin |
| Sealed Option: | Sealed |
| Voltage Rating: | 24V |
| Current Rating: | 25mA |
| Terminal Pitch: | 2.54mm |
| Operating Temp Range: | -55°C to +105°C |
| Moisture Sensitivity Level: | 1 |
| Mounting Method: | Through Hole |
Available Packaging
Package Qty:
25 per Tube
Mounting Method:
Through Hole
