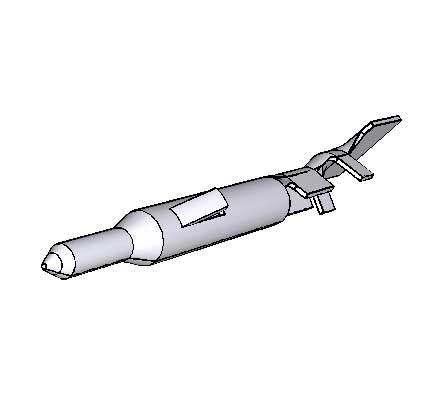

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

794059-1

1 Position 30-26 AWG Mini-Universal MATE-N-LOK Crimp Pin Contact

794059-1 Datasheet 794059-1 Documentation Catalog Application Note
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	TE Connectivity
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 10000 per Bag
Date Code:

TE Connectivity 794059-1 - Technical Attributes

Type:	Pin Headers
Style/Orientation:	Straight Header/Plug
No of Positions:	1
Gender:	Pin
Termination:	Crimp

Features & Applications

The 794059-1 is a .163" Centerline, 600 V, 9.5 A max. RoHS compliant, ELV compliant Connector used to provide a highly reliable and economic means of grouping multiple-lead connections in today's computer, computer/peripheral equipment, business machines, entertainment centers, appliances and other sophisticated commercial equipment. The electrical connector is an integral component in these applications.

Key Features:

Product Type = Contact
Connector Line = Mini-Universal MATE-N-LOK
Wire Insulation Diameter (mm [in]) = 0.89 – 1.27 [0.035 – 0.050]
Termination Method = Crimp
Solder Tail Contact Plating = Pre-Tin
Wire Range (mm [AWG]) = 0.05-15² [30-26]
Contact Diameter (mm [in]) = 0.99 [0.039]
Stock Thickness (mm [in]) = 0.20 [0.008]
Applies To = Wire/Cable
Contact Type = Pin
Contact Termination Type = Crimp
Contact Base Material = Brass
