Manufacturer Part #
DSP1A-L2-DC24V-R

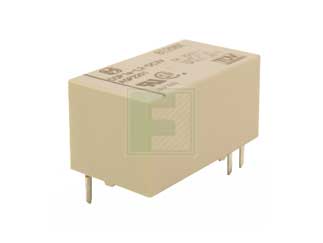

DSP Series 8 A SPST-NO 24 VDC 2 coil latching Reverse Polarity Power Relay
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Panasonic Industry | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:50 per Box Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Panasonic Industry DSP1A-L2-DC24V-R - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
File
Date
Certification Status
04/12/2024 Details and Download
We would like to inform that the safety standard certification mark will change from TUV to VDE on certain relay series.Effective Date: From November2022 production. Change Details: Due to the change of safety standard certification authority for EN61810-1, the TUV mark on certain relay series will be changed to VDE. There is no change in the acquired standard EN61810-1 itself.
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=DSP1A-L2-DC24V-R&field4=Panasonic Industry&field18=https://p1na.futureelectronics.com/p/4132263
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=DSP1A-L2-DC24V-R&field4=Panasonic Industry&field18=https://p1na.futureelectronics.com/p/4132263
Panasonic Industry DSP1A-L2-DC24V-R - Technical Attributes
Attributes Table
| Relay Type: | General Purpose |
| Coil Type: | Latching |
| Contact Form: | SPST (1 Form A) |
| Coil Current: | 12.5mA |
| Nominal Coil Voltage: | 24V |
| Contact Current-Max: | 8A |
| Coil Resistance: | 1.92kΩ |
| Switching Voltage: | 250V |
| Rated Power: | 300mW |
| Contact Material: | Silver Tin Oxide |
| Operating Temp Range: | -40°C to +60°C |
| Insulation Resistance: | 1000MΩ |
| Termination Style: | PC Pin |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
16 Weeks
Quantity
Unit Price
50
$5.56
100
$5.52
150+
$5.48
Product Variant Information section
Available Packaging
Package Qty:
50 per Box
Mounting Method:
Through Hole
