Manufacturer Part #
H11L1SM

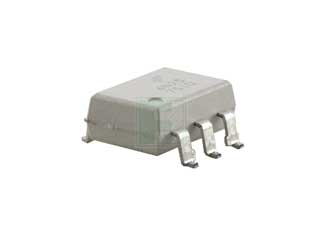

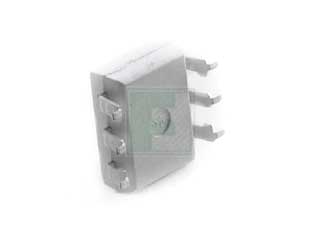

H11L1SM Series Single Channel 4170 Vrms SMT Open Collector Optocoupler - DIP-6
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:50 per Package Style:SMD-6 Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2407 | ||||||||||
Product Specification Section
onsemi H11L1SM - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
onsemi H11L1SM - Technical Attributes
Attributes Table
| No of Channels: | 1 |
| Isolation Voltage-RMS: | 4170V |
| Output Voltage-Max: | 16V |
| Directional: | Uni-Directional |
| Forward Voltage: | 1.2V |
| Reverse Voltage-Max [Vrrm]: | 6V |
| Average Forward Current-Max: | 30mA |
| Power Dissipation: | 250mW |
| Output Type: | Open Collector |
| Operating Temp-Max: | 85°C |
| Storage Temperature Range: | -40°C to +125°C |
| Package Style: | SMD-6 |
| Mounting Method: | Surface Mount |
Features & Applications
Pricing Section
Global Stock:
66,628
USA:
66,628
On Order:
0
Factory Lead Time:
10 Weeks
Quantity
Unit Price
50
$0.26
3,000
$0.235
4,000
$0.255
10,000
$0.23
15,000+
$0.245
Product Variant Information section
Available Packaging
Package Qty:
50 per
Package Style:
SMD-6
Mounting Method:
Surface Mount
