Manufacturer Part #
MIC2941AWT

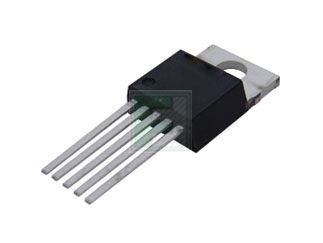

MIC2941A Series 1.25 A ADJ 1.24 to 26 Vout LDO Voltage Regulator - TO-220-5
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Microchip | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:50 per Tube Package Style:TO-220-5 | ||||||||||
| Date Code: | 2503 | ||||||||||
Product Specification Section
Microchip MIC2941AWT - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
Microchip MIC2941AWT - Technical Attributes
Attributes Table
| Input Voltage-Min: | 2V |
| Input Voltage-Max: | 26V |
| Output Voltage Fixed: | 1.24V |
| Dropout Voltage-Max: | 600mV |
| Output Current-Max: | 1.25A |
| Tolerance (%): | ±1% |
| Operating Temp Range: | -40°C to +125°C |
| Regulator Topology: | Fixed |
| Quiescent Current: | 240µA |
| No. of Outputs: | Single |
| Output Noise: | 400µV |
| Load Regulation (%): | 0.2% |
| Current - Limit: | 3.5A |
| Line Regulation (%): | 0.5% |
| Package Style: | TO-220-5 |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
7 Weeks
Quantity
Unit Price
50
$0.97
200
$0.94
750
$0.915
1,250
$0.905
2,500+
$0.875
Product Variant Information section
Available Packaging
Package Qty:
50 per Tube
Package Style:
TO-220-5
