Manufacturer Part #
SDA05H1SBD

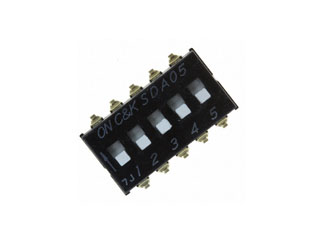

SDA Series 5 Position SPST Surface Mount Low Profile Dip Switch
| | |||||||||||
| | |||||||||||
| Mfr. Name: | C&K | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:30 per Tube Mounting Method:Stud Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
C&K SDA05H1SBD - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
C&K SDA05H1SBD - Technical Attributes
Attributes Table
| Type: | Dip |
| No of Positions: | 5 |
| Circuitry: | SPST |
| Operating Force: | 800gf |
| Sealed Option: | Sealed |
| Contact Resistance: | 50mΩ |
| Voltage Rating: | 24V |
| Current Rating: | 25mA |
| Insulation Resistance: | 100MΩ |
| Terminal Pitch: | 2.54mm |
| Operating Temp Range: | -40°C to +85°C |
| Mounting Method: | Stud Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
14 Weeks
Quantity
Unit Price
1
$1.58
25
$1.55
50
$1.54
150
$1.52
300+
$1.48
Product Variant Information section
Available Packaging
Package Qty:
30 per Tube
Mounting Method:
Stud Mount
