NorComp | 172-E15-203R001

Manufacturer Part #

172-E15-203R001

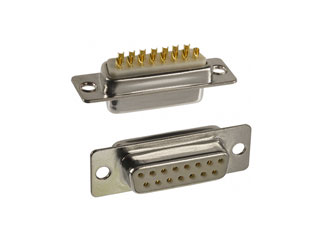

172 Series 15 Position Dual Row Female Dip Solder D-Sub Connector

ECAD Model:
Mfr. Name: NorComp
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
NorComp 172-E15-203R001 - Technical Attributes
Attributes Table
No of Positions: 15
Style/Orientation: Free Hanging In-line
Termination: Solder
Operating Temp Range: -50°C to +100°C
Voltage Rating: 500V
Current Rating: 5A
Contact Plating: Gold
Material: Polybutylene Terephthalate
Gender: Female
Type: Receptacle
Color: White
Insulation Resistance: 1000MΩ
Mounting Method: Through Hole
Features & Applications

The 172-E15-203R001 is a 15 Position Solder Cup Female D-Sub Headers.

Product Features:

  • Shell: Steel with Tin,nickel plated
  • Insulator: Glass-filled thermoplastic
  • Stamped contacts:
  • Male pins - Brass
  • Female pins - Brass
  • Plating: Gold flash on entire contact

Applications:

  • Available in 5 industry sizes/positions (9, 15, 25, 37, 50).
  • Non-removable contacts.
  • Nickel shells available only.
  • Male shells have indents to provide grounding and additional retention.
  • Screw machine contacts offer high reliability.
  • Optional mounting hardware available.

View the 172-E15 series of D-Sub

Read More...
Pricing Section
Global Stock:
0
USA:
0
On Order:Order inventroy details
160
Factory Stock:Factory Stock:
0
Factory Lead Time:
16 Weeks
Minimum Order:
1
Multiple Of:
1
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$3.25
USD
Quantity
Unit Price
1
$3.25
15
$3.18
40
$3.14
125
$3.09
300+
$3.00
