Manufacturer Part #

KSZ9021GNI

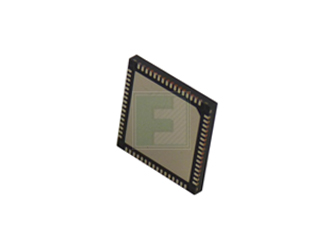

3.465 V Gigabit Ethernet Transceiver with GMII/MII Support - QFN-64

KSZ9021GNI Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	Microchip
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 348 per Tray Package Style: QFN-64 Mounting Method: Surface Mount
Date Code:

Microchip KSZ9021GNI - Technical Attributes

Supply Voltage-Nom:	3.135V to 3.465V
No of Functions / Channels:	1
Interface Type:	GMII/MII
Package Style:	QFN-64
Mounting Method:	Surface Mount

Features & Applications

The KSZ9021GNI is a 3.465 V Gigabit Ethernet Transceiver with GMII/MII Support available in QFN-64 SMT Package. It is completely integrated triple speed (10Base-T/100Base TX/1000Base-T) Ethernet Physical Layer Transceiver for transmission and reception of data on standard CAT-5 unshielded twisted pair (UTP) cable.

This provides the industry standard GMII/MII (Gigabit Media Independent Interface / Media Independent Interface) for connection to GMII/MII MACs in Gigabit Ethernet Processors and Switches for data transfer at 1000 Mbps or 10/100Mbps speed

Features:

Single-chip 10/100/1000Mbps IEEE 802.3 compliant Ethernet Transceiver
GMII/MII standard compliant interface
Auto-negotiation to automatically select the highest link up speed (10/100/100Mbps) and duplex (half/full)
On-chip termination resistors for the differential pairs
On-chip LDO controller to support single 3.3V supply operation – requires only external FET to generate 1.2 V for the core
Jumbo frame support up to 16KB
125MHz Reference Clock Output
Programmable LED outputs for link, activity and speed
Baseline Wander Correction

Applications:

Laser/Network Printer
Network Attached Storage (NAS)
Network Server
Gigabit LAN on Motherboard (GLOM)
Broadband Gateway
Gigabit SOHO/SMB Router
IPTV
IP Set-top Box
