Keystone | 1438

Manufacturer Part #

1438

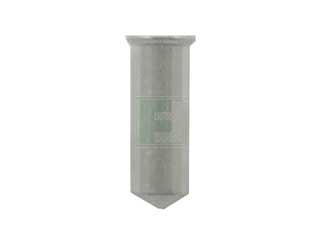

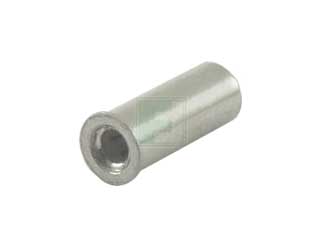

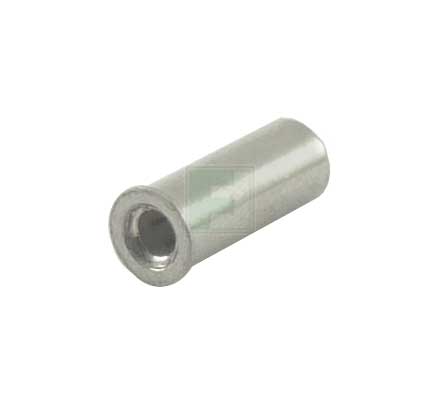

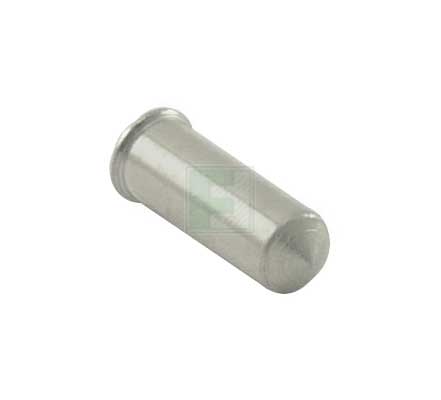

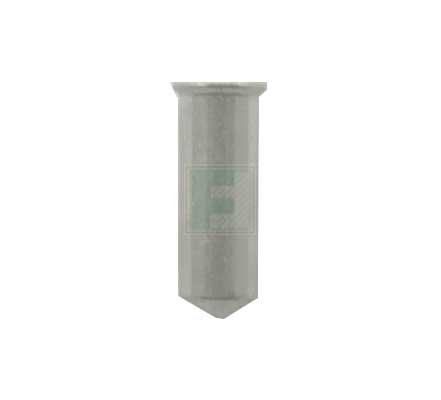

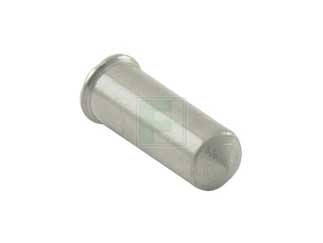

1438 Series Tin Straight Solder Mount Receptacle Micro Jack

ECAD Model:
Mfr. Name: Keystone
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Keystone 1438 - Technical Attributes
Attributes Table
Type: Receptacle
Style/Orientation: Straight Socket/Receptacle
Gender: Female Receptacle
Termination: Solder
Features & Applications

The 1438 is a Tin/Lead .102 inch Diameter Solder Mount Micro Jack .

Product Specifications:

  • Space saving design for high density packaging
  • Beryllium Copper multi-spring contact maintains retention after multiple insertions
  • Ideal for mounting transistors, resistors, diodes, IC’s and similar miniature components
  • Custom micro jacks manufactures
  • Other platings available
  • Body: Brass, ASTM-B16
  • Spring: Beryllium Copper (QQ-C-533)
  • Gold Plating: .000010 per MIL-G-45204

View the 1438 series of PCB Pins and Receptacles

Read More...
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
1,188
Factory Lead Time:
N/A
Minimum Order:
500
Multiple Of:
500
Total
$315.00
USD
Quantity
Unit Price
1
$0.71
40
$0.69
100
$0.675
250
$0.66
500+
$0.63
