Manufacturer Part #

SDA04H1SBD

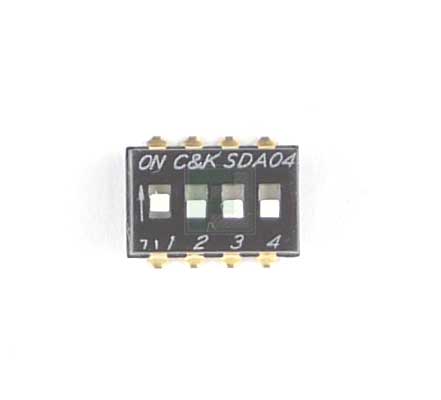

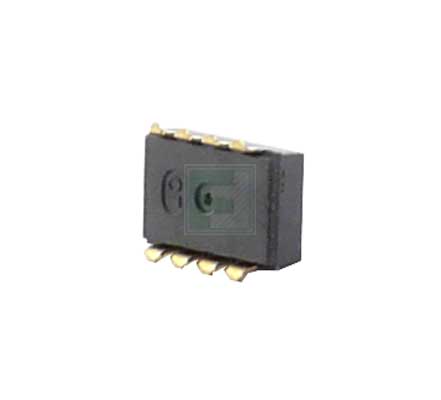

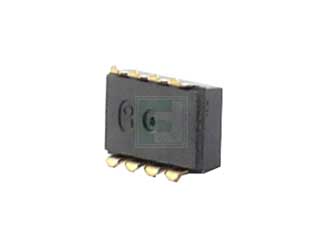

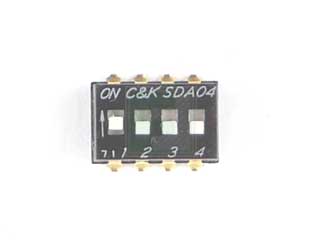

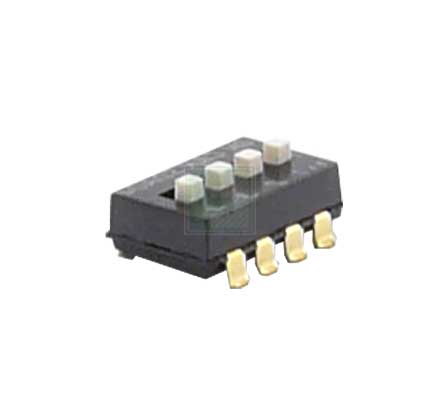

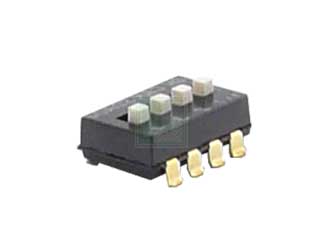

SDA Series Low Profile SPST 4 Position Surface Mount Sealed DIP Switch

SDA04H1SBD Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	C&K
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 35 per Tube Mounting Method: Surface Mount
Date Code:

C&K SDA04H1SBD - Technical Attributes

Type:	Dip
No of Positions:	4
Circuitry:	SPST
Actuator Style:	Standard
Operating Force:	800gf
Termination Style:	Gull Wing
Sealed Option:	Unsealed
Contact Resistance:	50mΩ
Voltage Rating:	24V
Current Rating:	25mA
Insulation Resistance:	100MΩ
Terminal Pitch:	2.54mm
Operating Temp Range:	-40°C to +85°C
Mounting Method:	Surface Mount

Expand List

Collapse List

Features & Applications

With more than 50 years experience, C&K is synonymous with quality and reliability, two qualities that come as standard with the SDA Series of DIP switches.

The SDA Series of DIP Switches offer a space saving low profile design for both surface mount and through hole applications. These DIP switches are available with 1-12 positions with the option of flush or extended actuators. All SDA switches have a Single Pole, Single Throw (SPST) Normally Open (NO) switch operation. Terminals are gold plate over nickel plated brass with gold plated Beryllium copper contacts.

Typical applications for the SDA Low Profile DIP Switch include:

Address switch for industrial controls
Logic switching for computers and peripherals
Function controlling for numerous applications.

The SDA04H1SBD offers a Single Pole, Single Throw (SPST) Normally Open (NO) switch operation. This surface mount 4 position low profile DIP switch has extended actuators and packaged in a 35 piece tube.
