Nexperia | BAW101,215

Manufacturer Part #

BAW101,215

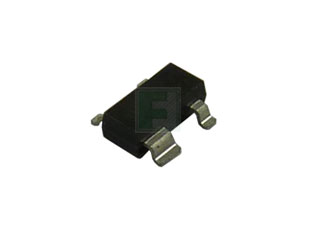

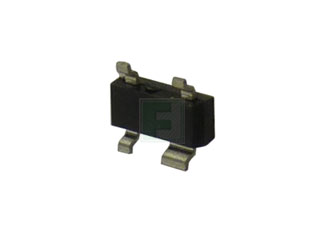

BAW101 Series 300 V 250 mA Surface Mount High Voltage Double Diode - SOT-143B

ECAD Model:
Mfr. Name: Nexperia
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Nexperia BAW101,215 - Technical Attributes
Attributes Table
Mounting Method: Surface Mount
Features & Applications

The BAW101,215 is a high-speed switching diode array with two separate dice, fabricated in planar technology and encapsulated in a small SOT143B plastic SMD package.

Features:

  • Small plastic SMD package
  • High switching speed: max. 50 ns
  • High continuous reverse voltage: 300 V
  • Electrically insulated diodes

Applications:

  • High voltage switching
  • Automotive
  • Communication





Read More...
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
-1
Factory Lead Time:
8 Weeks
Minimum Order:
21000
Multiple Of:
3000
Total
$764.40
USD
Quantity
Unit Price
3,000
$0.0378
6,000
$0.0372
12,000
$0.0366
15,000
$0.0364
45,000+
$0.0352
