Hirose Electric | DF3-2EP-2C

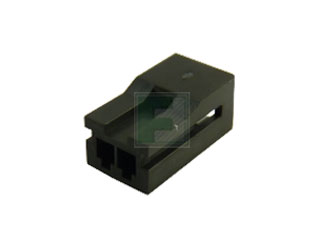

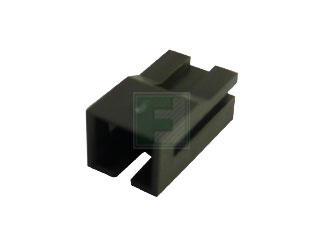

The DF3-2EP-2C is a Part of DF3 Series 2 Position 2 mm Pitch In-Line Plug Crimp Socket.

Features:

• ID Socket
• Low profile design with the mounting height of 6.8mm
• Achieves the multi-harness by the full automatic ID machine in combination with the DF11 series ID type. (DF11 series represents the 2mm pitch single-row product.Please refer to page B220 to B233.)
• Crimp Socket
• Low profile design with mounting height 7.5mm
• Provide the contact crimping area with the sufficient space, and secures the stable Crimping operation
• Receptacle
• The board can be connected horizontally or vertically in combination with the straight header with the right angle header
• For horizontal connection, the board to board size is the low profile of 6.6mm
• Compatibility with the in-line plug allows the receptacle to set the board side to the receptacle and the cable side to the plug in the board to cable connection
• Pin Header
• The board pre-fixed kink is treated with the post pin
• The style employs a scoop-proof and sturborn box type
• The type corresponding to SMT is avilable, using the heat-proof resin. This SMT header is equipped with the metal tab to prevent peeling in the solder joint area
• In-line Plug
• The crimping in-line plug consits of two types, one type, which has pursued after space merits, and the other employs the panel lock type, which can be fixed to the panel
• The in-line adapter is available to insert and in-line the ID socket from both sides

Applications:

• Business equipment such as copy machine and printer
