Manufacturer Part #

CB315FP-R

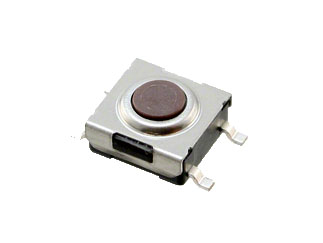

CB3 Series Process Sealed 6 mm SPST 1.57 N Surface Mount Tactile Switch

CB315FP-R Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	NKK Switches
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 1000 per Reel Mounting Method: Surface Mount
Date Code:	2509

NKK Switches CB315FP-R - Technical Attributes

Switch Operation:	Off-Mom
Circuitry:	SPST N.O.
Voltage Rating:	24V
Current Rating:	50mA
Insulation Resistance:	100MΩ
Actuation Force:	1.57N
Contact Material:	Silver Over Brass
Operating Force:	157gf
Contact Plating:	Silver
Actuator Style:	Flat Blue Button
Termination Style:	Gull Wing
Dielectric Withstanding Voltage:	250V
Operating Temperature:	-25°C to +70°C
Dimension:	H 6.2mm x L 6.6mm x W 6.2mm
Mounting Method:	Surface Mount

Expand List

Collapse List

Features & Applications

The CB3 Series Sealed construction prevents contact contamination and allows automated soldering and cleaning. 0.244” (6.2mm) square body allows compact mounting. Heat tolerant resin used for actuator and base meets UL flammability rating of 94V-0 and maintains switch reliability through vapor phase and infrared convection reflow soldering. Dome contact gives crisp tactile feedback to positively indicate circuit transfer and assures high reliability and long life – more than 100,000 operations.

Specifications:

Electrical Capacity (Resistive Load)

Low Level: 50 mA @ 24 V DC maximum

Materials & Finishes:

Actuator: Glass fiber reinforced polyamide (UL94V-0)
Case: Stainless steel
Seal: Polytetrafluoroethylene
Base: Polyphthalamide (UL94V-0)
Movable Contacts: Beryllium copper with silver plating
Stationary Contacts: Brass with silver plating
Terminals: Brass with silver plating

Standards & Certifications:

Flammability Standards: UL94V-0 actuator & base
UL Recognition or CSA Certification: The CB3 Series tactiles have not been tested for UL recognition or CSA certification. These switches are designed for use in a low-voltage, low-current, logic-level circuit. When used as intended in a logic-level circuit, the results do not produce hazardous energy
