Boyd | 7109DG

Manufacturer Part #

7109DG

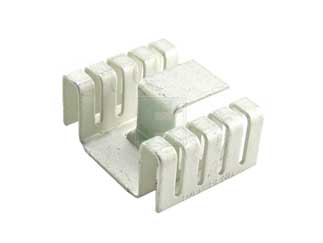

D2 Pak (TO-263) Package 11 C/W Thermal Resistance Surface Mount Heat Sink

ECAD Model:
Mfr. Name: Boyd
Standard Pkg:
Product Variant Information section
Date Code: 2330
Product Specification Section
Boyd 7109DG - Technical Attributes
Attributes Table
Thermal Resistance: 11°C/W
Material: Matte Tin Plated
Dimension: H  11.43mm x L  39.38mm x W  25.4mm
Features & Applications

Boyd is the world’s largest thermal management provider.  With their world-class production facilities and over 40 years of experience in the industry, Aavid Thermalloy has the know-how and ability to provide a solution to the most demanding thermal challenges.  Aavid Thermalloy continues to be an innovator in thermal management technologies and a leader in heat sink manufacturing.

The 7109DG is a TO-263 package heat sink with a thermal resistance of 11.00 C/W.  This is a surface mount heat sink.  The 7109DG is black anodized heat sink.

Pricing Section
Global Stock:
12,700
USA:
12,700
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
6 Weeks
Minimum Order:
1
Multiple Of:
1
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$1.64
USD
Quantity
Unit Price
1
$1.64
25
$1.62
50
$1.60
150
$1.58
300+
$1.54
