Manufacturer Part #

TS01ABE

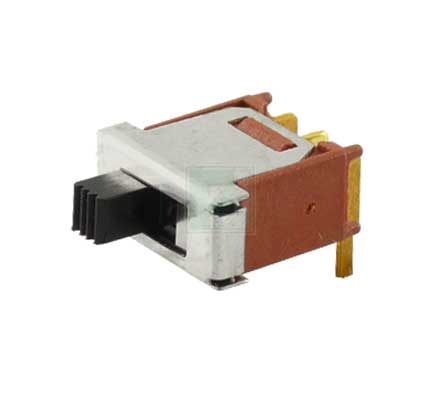

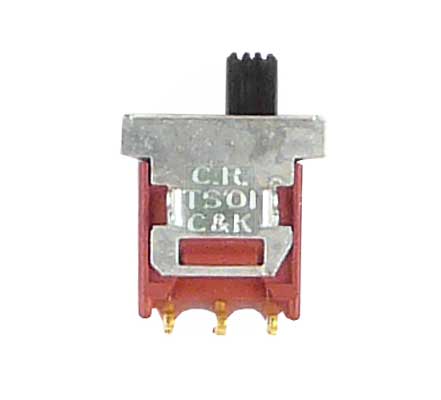

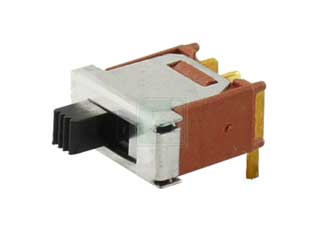

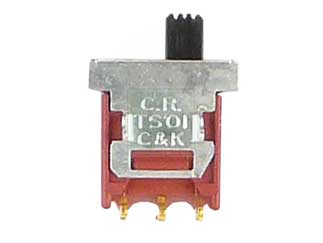

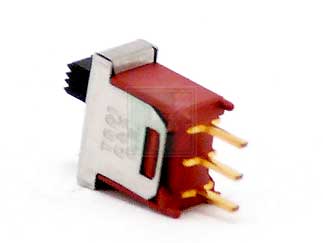

TS Series Tiny SPDT On-None-On Right Angle Through Hole Slide Switch

TS01ABE Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	C&K
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 100 per Bulk Mounting Method: Through Hole
Date Code:

C&K TS01ABE - Technical Attributes

Actuator Style:	Standard
Switch Operation:	On-None-On
Circuitry:	SPDT
Rated Voltage (VAC):	20VAC
Voltage Rating:	20V
Contact Current-Max:	3A
Insulation Resistance:	1000MΩ
Contact Resistance:	20mΩ
Contact Material:	Gold
Contact Plating:	Gold
Termination Style:	Right Angle / PC Through Hole
Dielectric Withstanding Voltage:	1000V
Operating Temperature:	-30°C to +85°C
Mounting Method:	Through Hole

Expand List

Collapse List

Features & Applications

The TS series from C&K is a perfect slide switch solution for test and measurement equipment and other hand held devices requiring a small footprint slide switch solution.

TS in C&K talk stands for Tiny Switch, so as you might expect the package size is compact (see data sheet in the download center for physical dimensions).

With more than 50 years experience, C&K is synonymous with quality and reliability, two qualities that come as standard with the TS Series of slide switches.

Rated up to 3 Amps, the TS series is compatible with bottom wash cleaning processes thanks to the epoxy terminal seal (part numbers ending in F). The TS series offers Single Pole Single Throw and Double Throw operation solutions with either right angle or straight PCB through hole or wire wrap termination. A choice of contact material is also possible with the TS series.

The TS01ABE offers a Single Pole, Double Throw (SPDT) switch operation providing an On-None-On function (2 positions). The TS01ABE is rated to a maximum of 3 amps. Termination comes in the form of 90 degree gold contacts for through hole mounting.
