Référence fabricant
B2B-EH-A(LF)(SN)

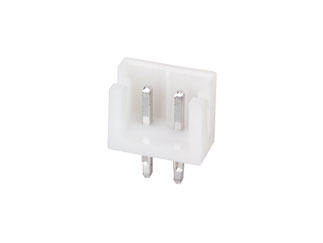

EH Series 2 Position 2.5 mm Pitch Top Entry Disconnectable Shrouded Header
| | |||||||||||
| | |||||||||||
| Nom du fabricant: | JST | ||||||||||
| Emballage standard: | Product Variant Information section Emballages disponiblesQté d'emballage(s) :1000 par Box Méthode de montage :Through Hole | ||||||||||
| Code de date: | 2301 | ||||||||||
Product Specification Section
JST B2B-EH-A(LF)(SN) - Spécifications du produit
Informations de livraison:
L'article ne peut être envoyé à certains pays. Voir la liste
L'article ne peut pas être envoyé aux pays suivants:
ECCN:
EAR99
Informations PCN:
N/A
Fichier
Date
Statut du produit:
Actif
Actif
JST B2B-EH-A(LF)(SN) - Caractéristiques techniques
Attributes Table
| No of Positions: | 2 |
| Pitch: | 2.5 mm |
| Style/Orientation: | Straight Header/Plug |
| Termination: | Crimp |
| Operating Temp Range: | -25°C to +85°C |
| Voltage Rating: | 250V |
| Current Rating: | 3A |
| Contact Plating: | Tin |
| Material: | Polyamide |
| No of Rows: | 1 |
| Gender: | Male |
| Type: | Shrouded Header |
| Mating Type: | Friction Lock |
| Color: | Natural |
| Insulation Resistance: | 1000MΩ |
| Méthode de montage : | Through Hole |
Fonctionnalités et applications
EH Shrouded Headers from JST are the thinnest 2.5 mm (.098”) pitch connectors. With a height of 8.1MM(.319”) after mounting and 3.8mm (.150”)in width this disconnectable crimp style connector is designed for high density connection. This compact, highly reliable connector is perfect for internal wire designs for the printed circuit board applications.
B2B-EH-A/LF/SN is a 2 position top entry Shrouded Header. This particular Shrouded header comes in white. The shrouded Header is interchangeable with those of the HR crimp style and insulation displacement connectors.
Pricing Section
Stock global :
33 597
États-Unis:
33 597
Délai d'usine :
16 Semaines
Quantité
Prix Internet
1
$0.0568
750
$0.0546
2 500
$0.0523
7 500
$0.0503
25 000+
$0.0462
Product Variant Information section
Emballages disponibles
Qté d'emballage(s) :
1000 par Box
Méthode de montage :
Through Hole
