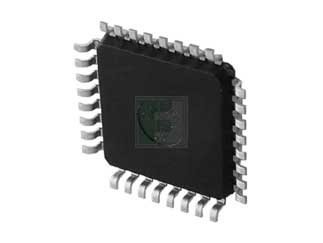

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

MC9S08DZ60ACLH

HCS08 Series 60 KB Flash 4 KB RAM 40 MHz 8-Bit Microcontroller - LQFP-64

MC9S08DZ60ACLH Datasheet MC9S08DZ60ACLH Documentation Brochure AN3615--Design Considerations for Implementing EEPROM using the MC9S08DZ60 User Guide Fact Sheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	NXP
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 800 per Tray
Date Code:	2440

NXP MC9S08DZ60ACLH - Technical Attributes

Operating Temperature:

-40°C to +85°C

Features & Applications

The MC9S08DZ Series devices are members of the low-cost, high-performance HCS08 Family of 8-bit microcontroller units (MCUs). All MCUs in the family use the enhanced HCS08 core and are available with a variety of modules, memory sizes, memory types, and package types.

Features:

Up to 128 Kb flash read/program/erase over full operating voltage and temperature
Up to 8 Kb RAM
Up to 2 Kb EEPROM
Two very low-power stop modes
Peripherals:
- CAN protocol_Version 2.0 A,B
- Serial Communications Interface (SCI) with LIN 2.0
- Up to 2 Serial Peripheral Interface (SPI)
- Up to 2 I²C
- Analog comparators with selectable interrupt on rising, falling or either edge of comparator output
Timers:
- One 16-bit, 6-channel timer
- One 16-bit, 2 channel timer
- One 16-bit, 4 channel timer (DZ128/96 and DV128/96 only)
- Input Capture, Output Compare or buffered edge-aligned PWM
- Real Time Clock

Embedded CAN
Embedded EEPROM
On-chip emulation / debug

Applications:

Passenger Vehicle and Motorcycles
Factory Automation
Building Automation
Industrial Machine Control
Health Care Equipment and Devices
Maritime Electronics

HCS08 Series 60 KB Flash 4 KB RAM 40 MHz 8-Bit Microcontroller - LQFP-64

Available Packaging

Package Qty:

NXP MC9S08DZ60ACLH - Product Specification

NXP MC9S08DZ60ACLH - Technical Attributes

Features & Applications

Available Packaging

Package Qty:
