Manufacturer Part #
VS-2EGH02-M3/5BT

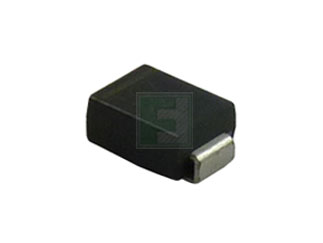

200V 2A 2-Pin Diode Ultrafast Recovery SMB
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Vishay | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3200 per Reel Package Style:SMB (DO-214AA) Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2329 | ||||||||||
Product Specification Section
Vishay VS-2EGH02-M3/5BT - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
Vishay VS-2EGH02-M3/5BT - Technical Attributes
Attributes Table
| Type: | Standard |
| Configuration: | Single |
| Average Rectified Current-Max: | 2A |
| Reverse Current-Max: | 2µA |
| Forward Voltage: | 0.9V |
| Reverse Voltage-Max [Vrrm]: | 200V |
| Reverse Recovery Time-Max: | 23ns |
| Diode Capacitance-Max: | 12F |
| Average Forward Current-Max: | 2A |
| Peak Current-Max: | 70A |
| Operating Temp Range: | -55°C to +175°C |
| Moisture Sensitivity Level: | 1 |
| Package Style: | SMB (DO-214AA) |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
3,200
USA:
3,200
On Order:
0
Factory Lead Time:
N/A
Quantity
Unit Price
3,200
$0.105
6,400
$0.103
12,800
$0.102
16,000+
$0.101
Product Variant Information section
Available Packaging
Package Qty:
3200 per Reel
Package Style:
SMB (DO-214AA)
Mounting Method:
Surface Mount
