Panasonic Low Profile Type PIR Motion Sensors
Featuring a wide variety of detection types

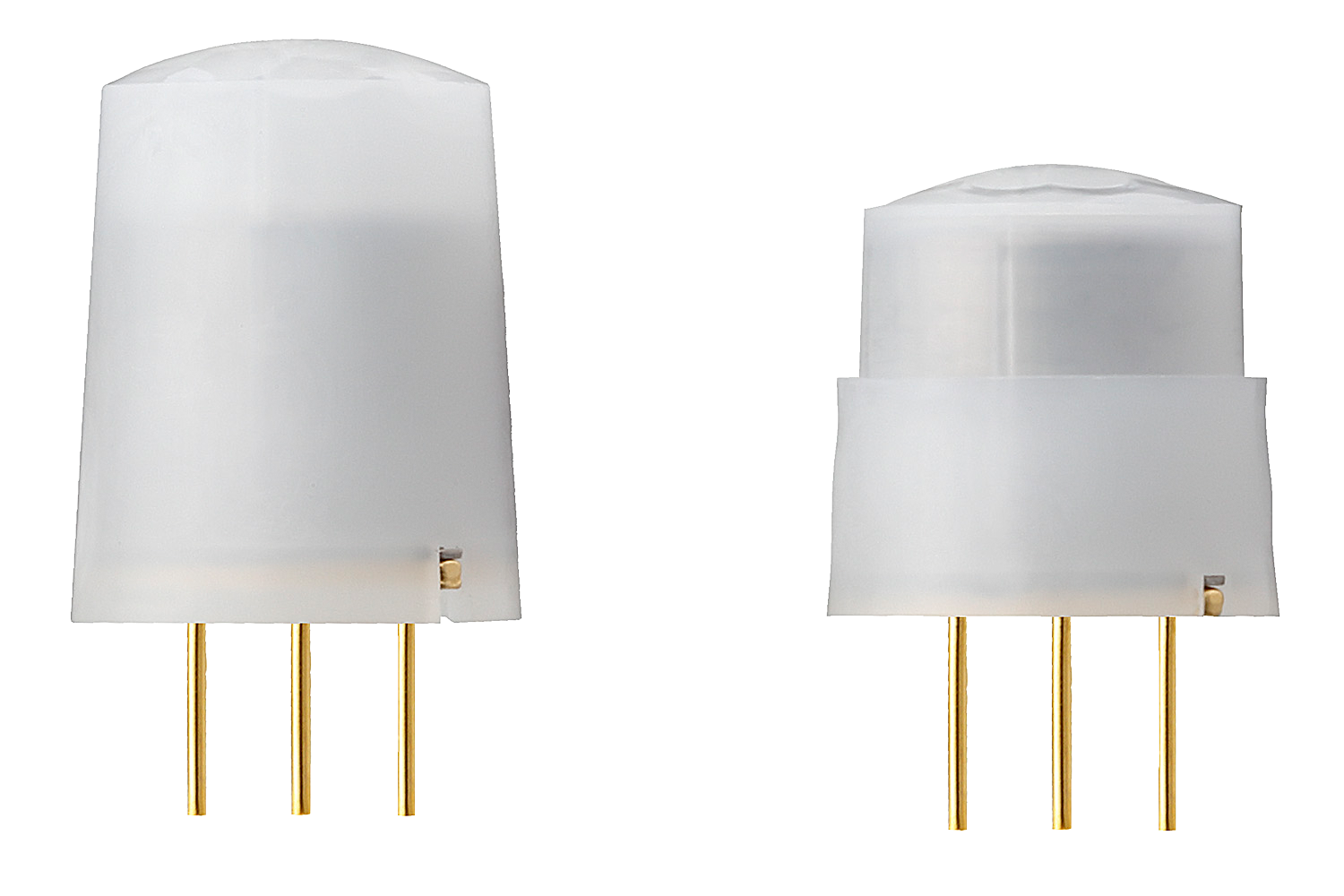

Panasonic PIR Motion Sensors offer a lower profile alternative to standard lens design (10.9mm versus 14.4mm height). The New “Low Profile” PIR Motion Sensors feature a one-chip ASIC design which is superior to discreet solutions by saving space, adding electro-magnetic shielding to all circuitry and cutting down on the number of components required.
These Passive Infrared (PIR) sensors consist of a lens to create various detection zones, an optical filter to block non-infrared light, pyroelectric sensing elements and an impedance converter to get an electrical signal. In addition, Panasonic also integrates an amplifier and comparator circuit on the same chip all densely packed inside the stem block.
PIR Motion Sensor Applications include:
- Lighting Controls
- Thermostats and HVAC Systems
- Smart Home and IoT
- IP Cameras and Surveillance Systems
- Digital Signage
PIR Sensor Lens Design Type Options
Multiple Design Options Available The latest PIR Motion Sensor lens design options include Wide Area Detection offering a wide detection spanning over 10.8 meters. The EKMC and EKMB Series (shown below) offer this design alternative. Other formats include long distance, wall installation, slight motion, high density/long distance, horizontally wide, and standard.
Wide Area Detection
The latest lens design option within Panasonic's EKMB and EKMC Series product line ups providing wide area detection spanning over 10.8 meters.
Ultra Slight Motion
Also available within the EKMB and EKMC Series, this product family is designed to provide ultra slight motion detection. Their high signal to noise ratio ensures the prevention of false triggers.
Low Profile
Another EKMB and EKMC Series product, these motion sensors are geared towards space-constrained applications with their lower profile format (10.9mm versus 14.4mm height).
Datasheets
EKMB Series
⇅
EKMC Series
⇅
More Information on PIR Sensors
+
