Manufacturer Part #
NSVG3109SG6T1G

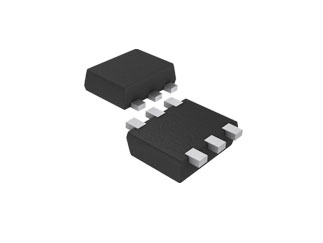

100 MHz to 3.6 GHz 6.4dBm General Purpose RF Amplifier - SC-88FL/MCPH6
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
onsemi NSVG3109SG6T1G - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
onsemi NSVG3109SG6T1G - Technical Attributes
Attributes Table
| RF Type: | General Purpose |
| Frequency Range: | 0.1GHz to 3.6Hz |
| Supply Current: | 11.5mA to 20.5mA |
| Supply Voltage: | 2.7V to 3.3V |
| P1dB: | 6.4dBm |
| Noise Figure: | 4.3dB |
| Gain: | 24dB |
| Power Dissipation: | 280mW |
| Operating Temp Range: | -40°C to +85°C |
| Storage Temperature Range: | -55°C to +150°C |
| Moisture Sensitivity Level: | 1 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
10 Weeks
Quantity
Unit Price
3,000
$0.205
6,000
$0.20
9,000+
$0.20
Product Variant Information section
Available Packaging
Package Qty:
3000 per Reel
Mounting Method:
Surface Mount
