Manufacturer Part #

IR2112PBF

IR2112S Series Dual 20 V Through Hole High and Low Side Driver - PDIP-14

ECAD Model:
Mfr. Name: Infineon
Standard Pkg:
Product Variant Information section
Date Code: 2506
Product Specification Section
Infineon IR2112PBF - Technical Attributes
Attributes Table
Configuration: High and Low Side
No of Outputs: Dual
Peak Output Current: 250mA
Supply Voltage-Max: 20V
Rated Power Dissipation: 1.6W
Quiescent Current: 180µA
Turn-off Delay Time: 160ns
Turn-on Delay Time: 180ns
Rise Time: 130ns
Fall Time: 65ns
Operating Temp Range: -55°C to +150°C

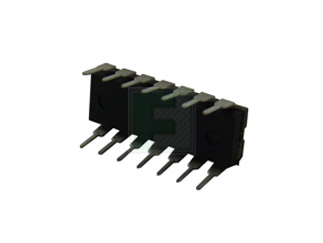

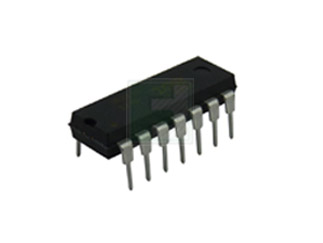

Package Style:  PDIP-14
Mounting Method: Through Hole
Features & Applications
The IR2112PBF is a high voltage, high speed power MOSFET and IGBT driver, available in through hole PDIP-14 package.

This device comes with independent high and low side referenced output channels. It feature a high pulse current buffer stage designed for minimum driver cross-conduction.

Features:

  • Floating channel designed for bootstrap operation
  • Fully operational to +600 V
  • Tolerant to negative transient voltage dV/dt immune
  • Gate drive supply range from 10 to 20 V
  • Undervoltage lockout for both channels
  • 3.3 V logic compatible
  • Separate logic supply range from 3.3 V to 20 V
  • Logic and power ground ±5 V offset
  • CMOS Schmitt-triggered inputs with pull-down
  • Cycle by cycle edge-triggered shutdown logic
  • Matched propagation delay for both channels
  • Outputs in phase with inputs

Specifications:

  • VOFFSET : 600 V max.
  • IO+/- : 200 mA / 420 mA
  • VOUT : 10 - 20 V
  • ton/off (typ.) : 125 & 105 ns
  • Deadtime (typ.) : 30 ns
