Monolithic Power Systems MPQ6631H-AEC1 Three-Phase Brushless DC (BLDC) Motor Driver

Supporting a single external Hall sensor or three external Hall-effect sensors

Monolithic Power Systems features their MPQ6631H-AEC1, a three-phase, brushless DC (BLDC) motor driver with integrated power MOSFETs. The BLDC driver supports a single external Hall sensor or three external Hall-effect sensors to drive a three-phase BLDC motor, with up to 3A of peak phase current and an input voltage (VIN) range between 3.6V and 35V.

The MPQ6631H-AEC1 by MPS controls the motor speed through the pulse-width modulation (PWM) signal or the DC signal on the PWM/DC pin with closed-/open-loop control. The device features a built-in, configurable speed curve function. It also features a sinusoidal drive for maximum torque, as well as low speed ripple and noise across the full speed range.

Monolithic Power Systems’ MPQ6631H-AEC1 provides rotational speed detection. The rotational speed detector (the FG/RD pin) is an open-drain output. It outputs a high or low voltage relative to the Hall comparator’s output. Direction control is achieved via the DIR pin’s input.

Rich protection features include input overvoltage protection (OVP), under-voltage lockout (UVLO), locked-rotor protection, over-current protection (OCP), and thermal shutdown protection.

The MPQ6631H-AEC1 motor driver is available in a TQFN-26 (3mmx4mm) package with wettable flanks. It is available in AEC-Q100 Grade 1.

Features

  • 3.6V to 35V Operating Input Voltage (VIN) Range
  • Up to 3A of Peak Phase Current
  • Integrated 160mΩ High-Side MOSFETs (HS-FETs) and Low-Side MOSFETs (LS-FETs)
  • Sinusoidal Drive
  • Supports a 0V to 1.2V DC Input or 1kHz to 100kHz Pulse-Width Modulation (PWM) Input
  • Supports Triple-Hall or Single-Hall Inputs
  • Closed-/Open-Loop Speed Control
  • Direction/Brake Input
  • Power-Save Mode
  • 0.5s/4.5s Lock Protection
  • Over-Current Protection (OCP)
  • Single-Pulse or Triple-Pulse FG Output per Electrical Cycle
  • FG Signal: Rotational Speed Indication
  • Soft Start (SS) for Low Noise and Current Overshoot
  • Available in a TQFN-26 (3mmx4mm) Package with Wettable Flanks
  • Available in AEC-Q100 Grade 1

Applications

  • Fans
  • Automotive Fans
  • General Three-Phase Brushless DC (BLDC)
  • Motors
  • Pumps

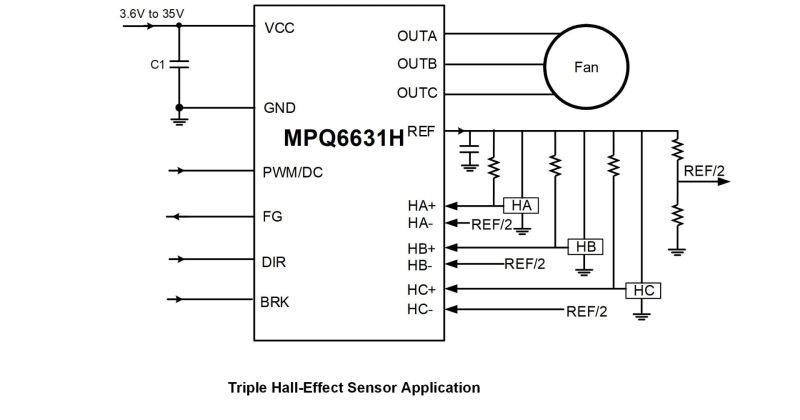

Triple Hall-Effect Sensor Application



Single Hall-Effect Sensor Application







Monolithic Power Systems — MPQ6631H-AEC1 BLDC Motor Driver

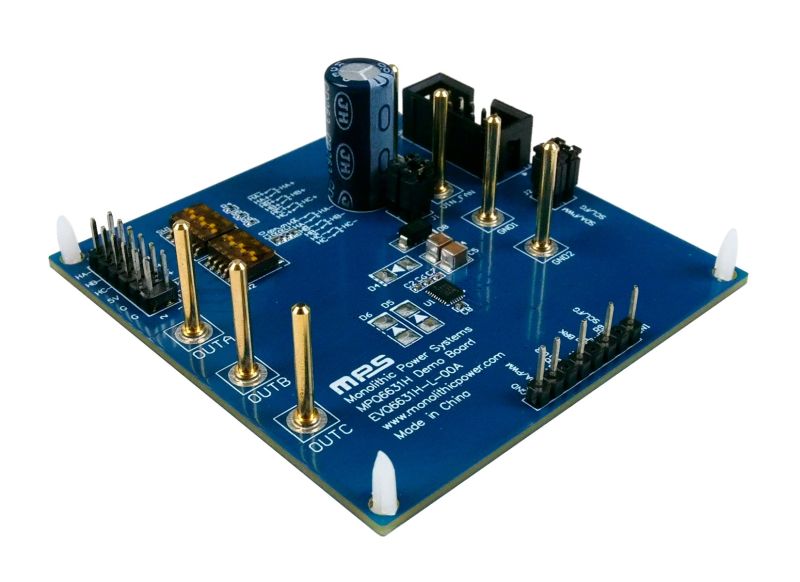

Evaluation Board

The Monolithic Power Systems EVQ6631H-L-00A is an evaluation board designed to demonstrate the capabilities of the MPQ6631H-AEC1, a 3-phase brushless DC (BLDC) motor driver with integrated power MOSFETs. The MPQ6631H-AEC1 drives a 3-phase BLDC motor with one external Hall sensor or three external Hall sensors. The peak phase current reaches up to 3A across the 3.6V to 35V input voltage (VIN) range.
