Dual automotive-grade op amp features low input-offset voltage

The STMicroelectronics TSB182 combines high speed with low power consumption, while a wide input-voltage range provides for robust operation in automotive circuits.

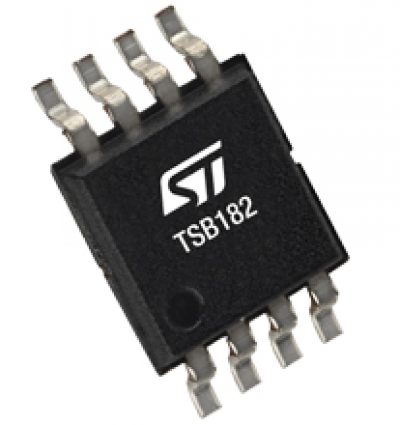

The STMicroelectronics TSB182 is a dual operational amplifier which offers a maximum input-offset voltage of 20 µV, simplifying the task of implementing accurate signal chains with low error.

The AEC-Q100-qualified TSB182 can operate over an extended supply-voltage range of 4 V to 36 V. The op amp offers an excellent ratio of speed to power consumption: gain-bandwidth product is 3 MHz, while operating current is typically just 650 μA per op amp.

Features

Rail-to-rail output

Operating-temperature range: -40°C to 125°C

2 V/µs slew rate

24 nV/√Hz noise

130 dB common-mode rejection ratio

EMI hardened

Applications

Industrial equipment

Automotive systems

Power supplies
