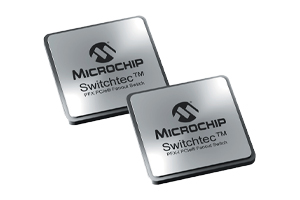

Microchip Switchtec™ PCIe® Switches

PCIe Gen3 fan-out switches provide up to 96 lanes with robust error containment

Microchip provides a comprehensive family of fan-out switches to enable the flexible implementation of high-speed signaling systems compliant with the PCIe Gen3 standard.



The Switchtec™ PFX/PFX-I PCIe Gen3 fan-out switch families implement multiple functions, including:

  • High-reliability PCIe 3.1-compliant switches supporting up to 96 lanes
  • 24 virtual switch partitions
  • 48 non-transparent bridges
  • Hot- and surprise-plug controllers for each port
  • Advanced error containment
  • Comprehensive diagnostics and debug capabilities





The PFX-I Gen3 PCIe switch supports the full feature set available on the PFX products, and operates over an extended temperature range, including a maximum junction temperature of 105°C, and a -40°C minimum ambient temperature.



The Switchtec PCIe Gen3 switches are available in multiple variants providing 96, 80, 64, 48, 32, or 24 lanes. The ports bifurcate from x2 to x16 lanes.



Error containment capabilities include advanced error reporting on all ports, downstream port containment on all downstream ports, and blocking of poisoned translation-layer packets. Completion time-out synthesis prevents incomplete non-posted transactions from causing an error state in an upstream host.



GPIOs are configurable for different cable and connector standards.

Microchip — Switchtec™ PCIe® Switches

Features

  • Up to 174Gbytes/s switching capacity
  • Logical non-transparent interconnect
  • Supports 1+1 and N+1 fail-over mechanisms
  • Supports multi-cast groups at each port
  • Peripheral interfaces
    • Up to 11 two-wire interfaces
    • Up to two SFF-8485-compliant SGPIO ports
    • Up to 109 parallel GPIO pins
    • Up to four UART interfaces
    • JTAG and EJTAG interface

Applications

  • Data centers
  • Defense equipment
  • Industrial servers
  • Workstations
  • Test equipment
  • Video production and broadcasting equipment
  • Mobile network infrastructure
  • Telecoms equipment:
    • Access networks
    • Metro networks
    • Core networks

Evaluation Kit

Kit Part Number: PM42100-KIT

The PM42100-KIT Switchtec Gen 4 PCIe Switch Evaluation Kit contains an evaluation board, cables and ChipLink Diagnostic Tools software. A 96-lane PCIe switch is mounted on the evaluation kit’s board.
