Vishay — VORA1010M4 Solid-State Relay

Intelligent Lighting

March 28, 2024
Intelligent Lighting
Issue 3 2024

Automotive-qualified solid-state relay provides superior switching performance

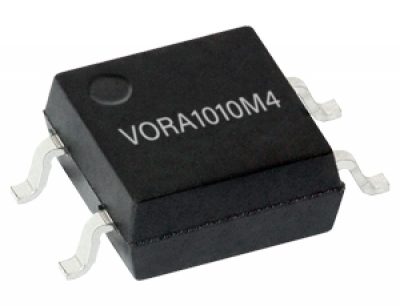

The VORA1010M4 relay from Vishay, which is suitable for load currents of up to 100 mA, offers high reliability and long lifetime in automotive, industrial and security applications.

The new Vishay VORA1010M4 offers the advantages of a solid-state alternative to a traditional electro-mechanical relay in a high-quality device that has AEC-Q102 qualification for use in automotive applications.

The optically isolated VORA1010M4 solid-state relay offers clean, bounce-free switching, and withstands a practically unlimited number of switching cycles to give long lifetime and high reliability in demanding applications.

The relay provides a high maximum withstanding isolation voltage of 3,750 Vrms according to UL 1577. Creepage and clearance distance is at least 5 mm.

The VORA1010M4 has various pending certifications, including UL/cUL, DIN EN 60747-5-5 (VDE 0884-5), and CQC.
